Customize User Interfaces (Optional)

Overview

As most UI configurations are primarily made from the OneTrust tenant, this section is optional. If your app has a use case where it needs to make additional configurations (e.g. font family) otherwise not available to be configured in the tenant or if it needs to control the UI configurations locally, you can use this custom configuration functionality.

UI elements are configured through a plist supplied by OneTrust. See the Sample App for a demo.

Import the Custom UI Property List

  1. Download the Sample App from your tenant. Steps here.
  2. After unzipping the file:
    1. Access the OTPublishersHeadlessSDK-XCFramework
    2. Select your corresponding file (if tvOS, select OTPublishersHeadlessSDKtvOS. If iOS, select the other one)
    3. Select OTPublishersHeadlessSDK.xcframework > ios-arm64
    4. OTPublishersHeadlessSDK.framework > OTSDK-UIConfig-iOS.plist

tvOS will follow the same steps but with tvos file labels.

  1. Copy the plist file into your app. Select 'Copy items if needed' to ensure the plist is added to the application folder hierarchy.

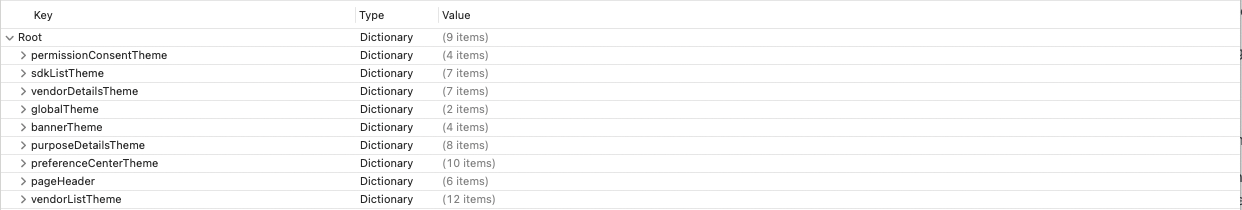

  2. Edit the UI elements in the plist as necessary.

👍

Do not add any rows or change the keys itself in the plist. Only change the values of existing properties.

Styles set in the plist will be given priority over server values when rendering the UI if the custom config property is set.

Configure the SDK

  1. As part of the UIConfigurator protocol, set shouldUseCustomUIConfig() to true.
  2. As part of the UIConfigurator protocol, conform to customUIConfigFilePath().
    1. While conforming to this method, provide the path to the plist.
//iOS and tvOS

//Conform to this in order to customize the UI locally
OTPublishersHeadlessSDK.shared.uiConfigurator = self

extension AppDelegate: UIConfigurator {
    func shouldUseCustomUIConfig() -> Bool {
      return true
    }

    func customUIConfigFilePath() -> String? {
      //path to plist file
      let customPath = Bundle.main.path(forResource: "OTSDK-UIConfig-iOS", ofType: "plist")
      return customPath
    }
}

Customizing the UI

This section describes the UI elements that can be configured.

Table of contents:

  1. Customizing the Navigation Bar
  2. Customizing the Banner View
  3. Customizing the Preference Center View
  4. Customizing the Purpose Details View
  5. Customizing the Vendor List View [for IAB TCF Customers]
  6. Customizing the Vendor Details View [for IAB TCF Customers]
  7. Customizing the SDK List View
  8. Customize CNIL Button
  9. Custom Fonts

Customizing Page Headers (Navigation Bar)

All page header related customizations are listed underpageHeader in the plist. This is a common theme that will be applied to all the SDK view navigation bars.

The following are the customizations available:

UI ElementKey NameTypeDescription
Text ColortextColorStringHex code. Styles the color of the text
Font NamefontNameStringStyles the font of the text
Tint ColortintColorStringHex code. Styles the tint color of the page header/nav bar
Background ColorbackgroundColorStringHex code. Styles the background color of the page header/nav bar
Font Text StylefontTextStyleStringStyles the text style of the font (e.g. headline, callout, sub headline, etc.). See a list of supported text styles in the table below
Font SizefontSizeIntStyles the size of the font
Font Text Style Options
largeTitle
title1
title2
title3
headline
subheadline
body
callout
footnote
caption1
caption2

📘

Note

  • When a custom fontName is provided, at least one of the fontSize or fontTextStyle should also be provided in order for it to reflect.
  • In order for dynamic font sizes to be supported, the application will have to provide a valid value for fontTextStyle if customizing the fonts.

Customizing the Banner UI

All banner view related customizations are listed under bannerTheme in the plist.

The following are the customizations available for the Banner View:

UI ElementKey NameTypeDescription
LinkspolicyLink

vendorList
DictionaryStyles the Privacy Policy or Vendors List link
Background ColorbackgroundColorStringStyles the background color of the banner view
ButtonscloseButton

acceptAll

rejectAll

showPreferences
DictionaryStyles the close ('x'), accept all, reject all, and manage settings CTAs
Summarytitle

description
DictionaryStyles the title and description text of the banner view

Here's a list of possible UI styles to be changed under each applicable element above:

UI ElementKey NameTypeDescription
Text ColortextColorStringHex code. Styles the color of the text
Font NamefontNameStringStyles the font of the text
Tint ColortintColorStringHex code. Styles the tint color of the page header/nav bar
Background ColorbackgroundColorStringHex code. Styles the background color of the page header/nav bar
Font Text StylefontTextStyleStringStyles the text style of the font (e.g. headline, callout, sub headline, etc.). See a list of supported text styles in the table below
Font SizefontSizeIntStyles the size of the font
Font Text Style Options
largeTitle
title1
title2
title3
headline
subheadline
body
callout
footnote
caption1
caption2

📘

Note

  • When a custom fontName is provided, at least one of the fontSize or fontTextStyle should also be provided in order for it to reflect.
  • In order for dynamic font sizes to be supported, the application will have to provide a valid value for fontTextStyle if customizing the fonts.

Customizing the Preference Center UI

All preference center view related customizations are listed under preferenceCenterTheme in the plist.

The following customizations are available for the Preference Center View:

UI ElementKey NameTypeDescription
Purpose TitlepurposeTitleDictionaryStyles the text of the OneTrust categories/IAB purposes
ButtonsacceptAll

rejectAll

confirmMyChoice

closeButton
DictionaryStyles the accept, reject, close, and confirm choices CTAs
Show Logo on PCshowLogoOnPCBooleanDisplay/not display a logo
Summarytitle

description
DictionaryStyles the text of the title and description
Toggle ColortoggleColorStringHex code. Styles the toggle color when toggled ON
LinkspolicyLink

vendorList
DictionaryStyles the Privacy Policy or Vendor List link
Right Chevron ColorrightChevronColorStringHex code. Styles the color of the chevron or 'arrow' to the right of each category/purpose
Line Break ColorlineBreakColorStringHex code. Styles the lines separating each category/purpose (if enabled)
Background ColorbackgroundColorStringHex code. Styles the background color of the preference center view
Purposes Always Active StatuspurposesAlwaysActiveStatusDictionaryStyles the always active text of the strictly necessary categories

Here's a list of possible UI styles to be changed under each applicable element above:

UI ElementKey NameTypeDescription
Text ColortextColorStringHex code. Styles the color of the text
Font NamefontNameStringStyles the font of the text
Tint ColortintColorStringHex code. Styles the tint color of the page header/nav bar
Background ColorbackgroundColorStringHex code. Styles the background color of the page header/nav bar
Font Text StylefontTextStyleStringStyles the text style of the font (e.g. headline, callout, sub headline, etc.). See a list of supported text styles in the table below
Font SizefontSizeIntStyles the size of the font
Font Text Style Options
largeTitle
title1
title2
title3
headline
subheadline
body
callout
footnote
caption1
caption2

📘

Note

  • When a custom fontName is provided, at least one of the fontSize or fontTextStyle should also be provided in order for it to reflect.
  • In order for dynamic font sizes to be supported, the application will have to provide a valid value for fontTextStyle if customizing the fonts.

Customizing the Purposes Details UI

The consumer application has to edit the OTSDK-UIConfig.plist file in order to customize the UI. All the purpose details view related customization would be present under the purposeDetailsTheme dictionary in the plist.

The following color options are customizations available for the Purposes Details View:

  • backgroundColor (String) - A hex string representing the background color of the purposes details view
    • (ex: #FFFFFF)
  • lineBreakColor (String) - A hex string representing the separator lines color
    • (ex: #FFFFFF)
  • toggleColor (String) - A hex string representing the switch color when toggled On
    • (ex: #FFFFFF)

The following UI Elements are the customizations available for the Purposes Details View:

UI ElementKey NameApplied ToDefault Value
Group Summarytitle

description
Purpose Details Title

Purpose Details Description
fontName (String)

fontSize (Int)

fontTextStyle (String)

textAlignment (String)

textColor (String)
Consent TitleconsentTitleConsent TitlefontName (String)

fontSize (Int)

fontTextStyle (String)

textAlignment (String)

textColor (String)
Legitimate InterestlegitInterestTitleLegit Interest TitlefontName (String)

fontSize (Int)

fontTextStyle (String)

textAlignment (String)

textColor (String)
Purposes Always Active StatusalwaysActiveStatusAlways Active Status textfontName (String)

fontSize (Int)

fontTextStyle (String)

textAlignment (String)

textColor (String)
LinkssdkList

vendorList

fullLegalText
SDK Lists link

Vendor Lists link

Full Legal Text link
fontName (String)

fontSize (Int)

fontTextStyle (String)

textAlignment (String)

textColor (String)

Customizing the Vendor List UI

The consumer application has to edit the OTSDK-UIConfig.plist file in order to customize the UI. All the vendor list view related customization would be present under the vendorListTheme dictionary in the plist.

The following color options are customizations available for the Vendor List View:

  • backgroundColor (String) - A hex string representing the background color of the vendor list
    • (ex: #FFFFFF)
  • lineBreakColor (String) - A hex string representing the separator lines color
    • (ex: #FFFFFF)
  • toggleColor (String) - A hex string representing the switch color when toggled ON
    • (ex: #FFFFFF)
  • filterOnColor (String) - A hex string representing the filter icon color when filter is applied
    • (ex: #FFFFFF)
  • filterOffColor (String) - A hex string representing the switch color when no filter is applied
    • (ex: #FFFFFF)
  • filterSelectionColor (String) - A hex string representing the tint color of the check mark in the vendor filter list
    • (ex: #FFFFFF)

The following UI Elements are the customizations available for the Vendor List View:

UI ElementKey NameApplied ToDefault Value
Vendor List NavigationfilterNavTextVendor Filter Navigation Bar text(s)fontName (String)

fontSize (Int)

fontTextStyle (String)

textAlignment (String)

textColor (String)
Vendor ItemtitleVendor ItemfontName (String)

fontSize (Int)

fontTextStyle (String)

textAlignment (String)

textColor (String)
Filter ItemfilterItemTitleFilter ItemfontName (String)

fontSize (Int)

fontTextStyle (String)

textAlignment (String)

textColor (String)
ButtonsconfirmMyChoices

applyFilter
Confirm My Choices button

Apply Filter button
backgroundColor (String)

fontName (String)

fontSize (Int)

fontTextStyle (String)

textColor (String)

borderColor (String)

borderRadius (Int)

borderWidth (Int)
Search BarsearchBarVendor List Search BartextColor(String)

placeholderTextColor(String)

backgroundColor(String)

iconColor(String)

borderColor(String)

borderWidth(Int)

borderRadius(Int)

Customizing the Vendor Details UI

The consumer application has to edit the OTSDK-UIConfig.plist file in order to customize the UI. All the vendor details view related customization would be present under the vendorDetailsTheme dictionary in the plist.

The following color options are customizations available for the Vendor Details View:

  • backgroundColor (String) - A hex string representing the background color of the vendor details view
    • (ex: #FFFFFF)
  • toggleColor (String) - A hex string representing the switch color when toggled ON
    • (ex: #FFFFFF)

The following UI Elements are the customizations available for the Vendor Details View:

UI ElementKey NameApplied ToDefault Value
TitletitleVendor Details TitlefontName (String)

fontSize (Int)

fontTextStyle (String)

textAlignment (String)

textColor (String)
Details Summarytitle

description
Vendor Details Description Title

Vendor Details Description
fontName (String)

fontSize (Int)

fontTextStyle (String)

textAlignment (String)

textColor (String)
Consent TitleconsentTitleConsent TitlefontName (String)

fontSize (Int)

fontTextStyle (String)

textAlignment (String)

textColor (String)
Legitimate InterestlegitInterestTitleLegit Interest TitlefontName (String)

fontSize (Int)

fontTextStyle (String)

textAlignment (String)

textColor (String)
LinksprivacyNoticePrivacy Notice linkfontName (String)

fontSize (Int)

fontTextStyle (String)

textAlignment (String)

textColor (String)

Customizing the SDK List UI

The consumer application has to edit the OTSDK-UIConfig.plist file in order to customize the UI. All the SDK list view related customization would be present under the sdkListTheme dictionary in the plist.

The following color options are customizations available for the SDK List View:

  • backgroundColor (String) - A hex string representing the background color of the SDK list
    • (ex: #FFFFFF)
  • lineBreakColor (String) - A hex string representing the separator lines color
    • (ex: #FFFFFF)
  • filterOnColor (String) - A hex string representing the filter icon color when filter is applied
    • (ex: #FFFFFF)
  • filterOffColor (String) - A hex string representing the switch color when no filter is applied
    • (ex: #FFFFFF)

The following UI Elements are the customizations available for the SDK List View:

UI ElementKey NameApplied ToDefault Value
Summarytitle

description
SDK Item Title

SDK Item Description
fontName (String)

fontSize (Int)

fontTextStyle (String)

textAlignment (String)

textColor (String)
Check Mark Filter SelectionfilterSeletionColorCheck Mark tint colorselectionColor (String)
SDK Filter List Navigation BarfilterNavTextSDK Filter List Navigation Bar text(s)fontName (String)

fontSize (Int)

fontTextStyle (String)

textAlignment (String)

textColor (String)
SDK Filter ItemsdkItemFilter ItemfontName (String)

fontSize (Int)

fontTextStyle (String)

textAlignment (String)

textColor (String)
ButtonsapplyFilterApply Filter buttonbackgroundColor (String)

fontName (String)

fontSize (Int)

fontTextStyle (String)

textColor (String)

borderColor (String)

borderRadius (Int)

borderWidth (Int)
Search BarsearchBarSDK List Search BartextColor(String)

placeholderTextColor(String)

backgroundColor(String)

iconColor(String)

borderColor(String)

borderWidth(Int)

borderRadius(Int)

Customizing 'Display CNIL as Button'

With OneTrust 6.22.0, mobile app customers can now customize the Continue Without Accepting link as a button to promote a consistent experience when presented with a close option. For more information on the app-side configuration of mobile templates to display as text or link, see CNIL Mobile App Requirements on the myOneTrust Knowledge Base.

UIConfigurator - Return True

  1. Open the AppDelegate.swift file.
  2. Locate the shouldUseCustomUIConfig() -> Bool function.
  3. Update the value as return true. It will be set to return false by default.
extension AppDelegate: UIConfigurator {

    func shouldUseCustomUIConfig() -> Bool {
        return true
    }

Customize closeButton

  1. Open the OTSDK-UIConfig-iOS.plist file.
  2. Locate Root > bannerTheme > buttons > closeButton.
  3. The parameters for closeButton will be blank by default. Provide your customizations for the Continue Without Accepting button.
Key NameType
backgroundColorString
fontNameString
fontSizeNumber
fontTextStyleString
textColorString
borderColorString
borderWidthNumber
borderRadiusNumber

Custom Fonts

The Native SDK can support a Font Name override to support custom fonts.

  1. Add custom fonts to Xcode: Apple documentation
  2. Reference the fonts in the SDK plist. Ensure you specify a font size in the plist for the custom font to take effect.
